Specifications
Model 50.43

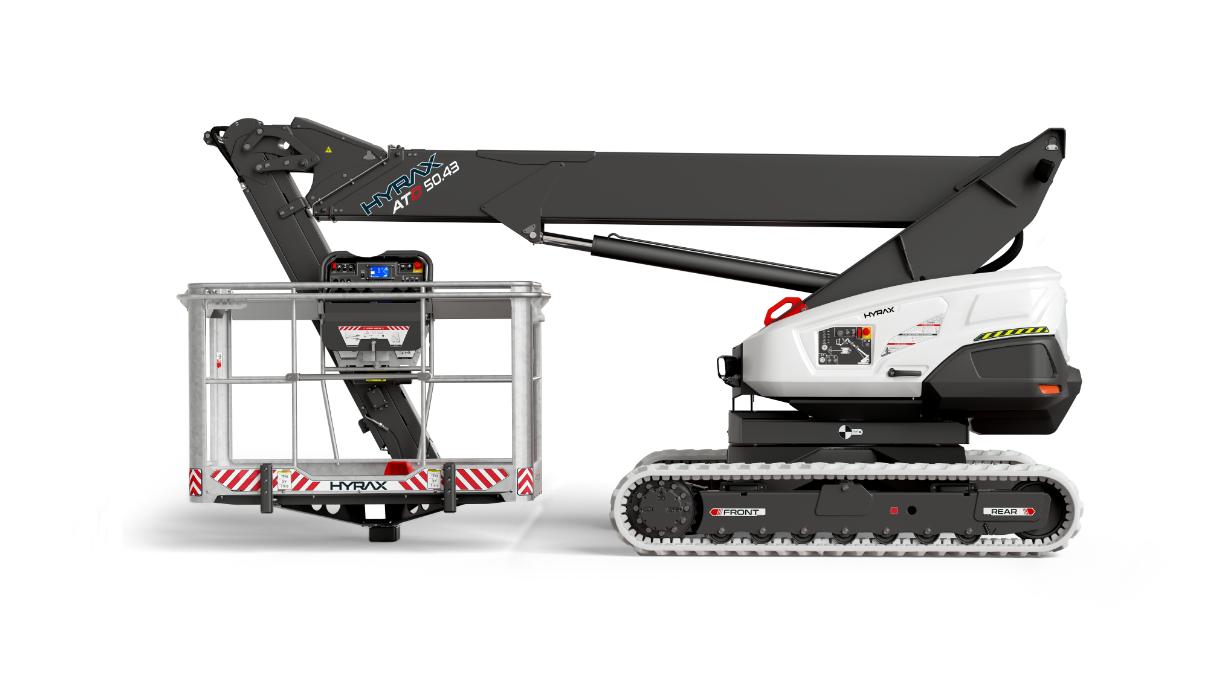

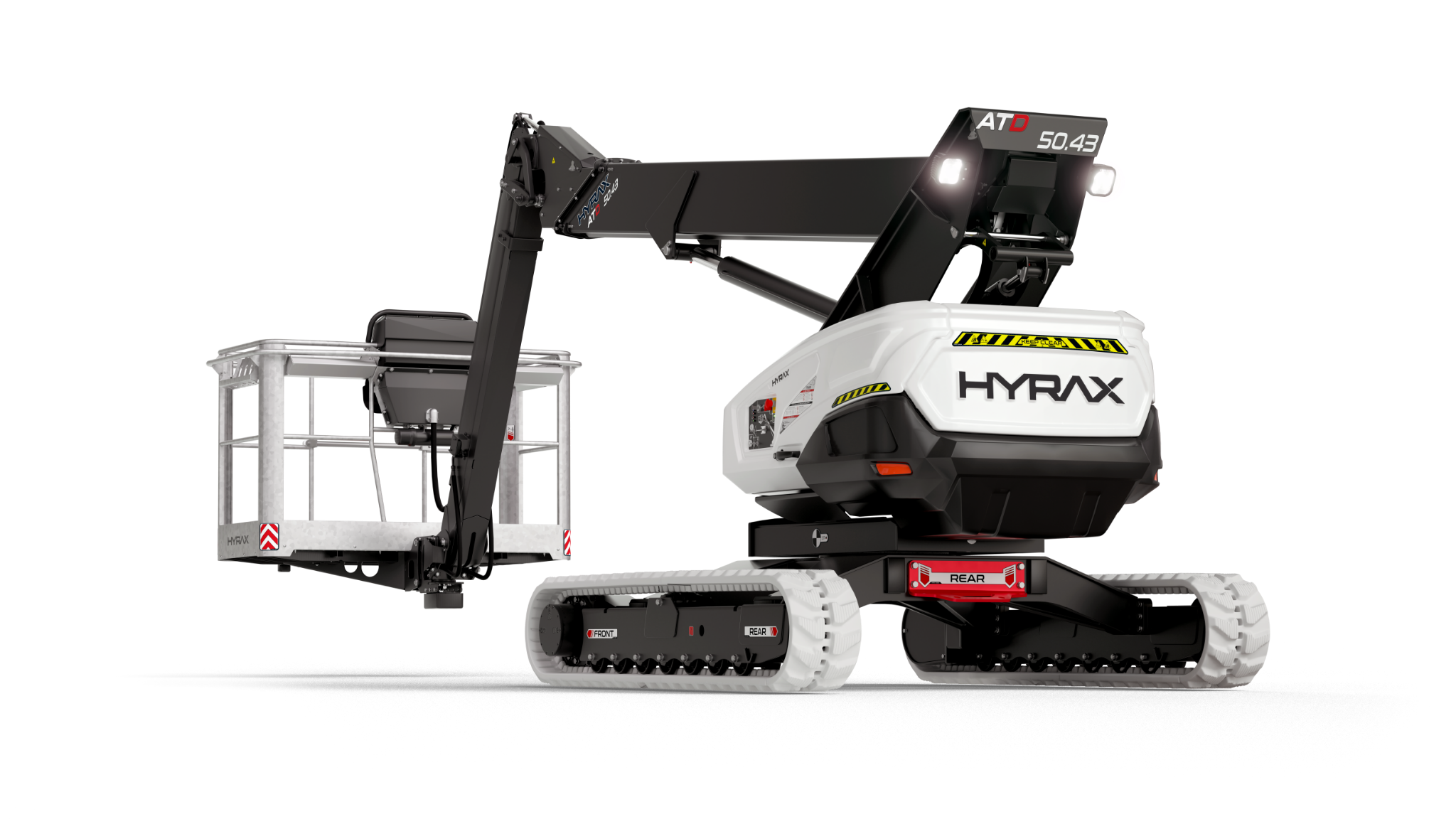

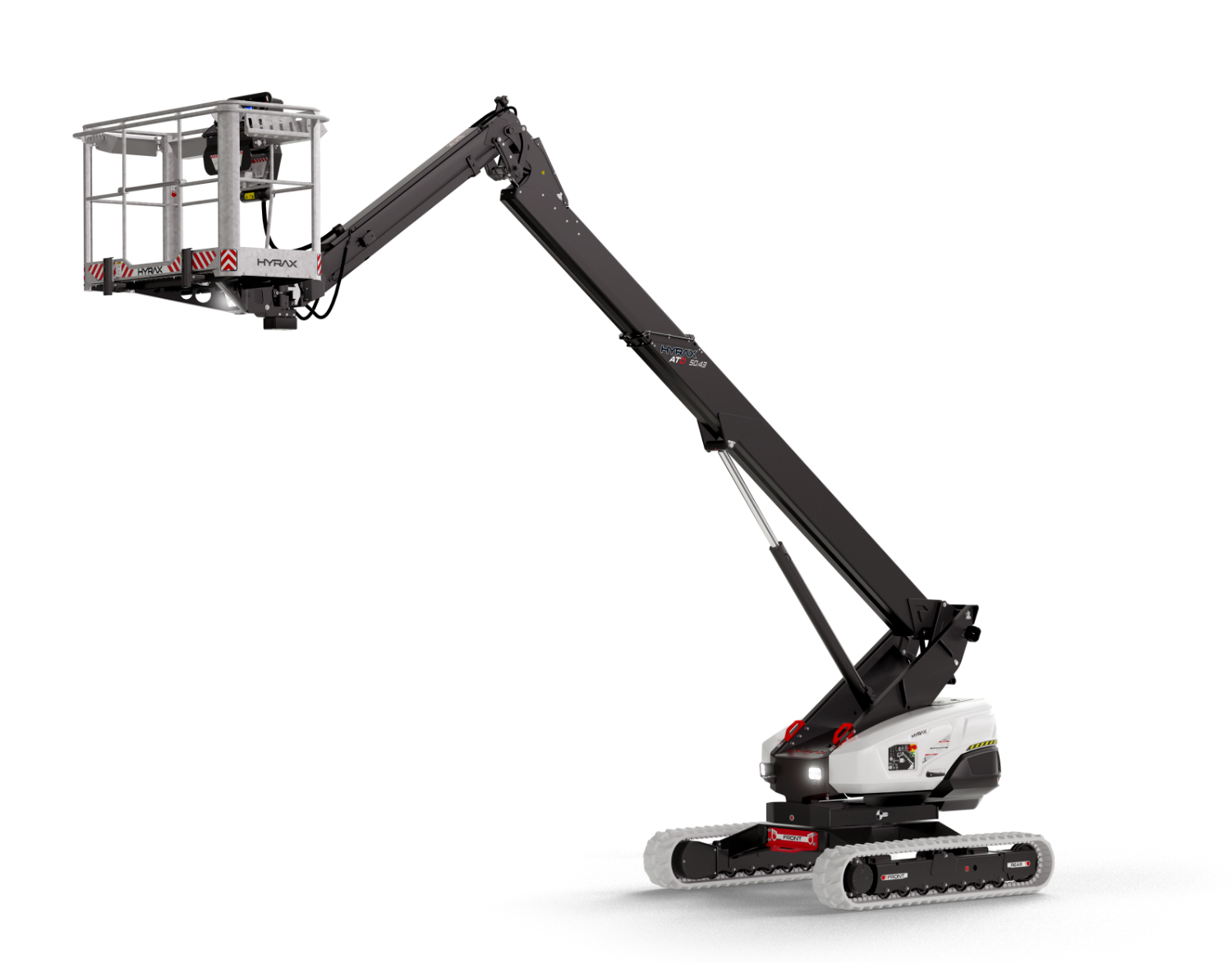

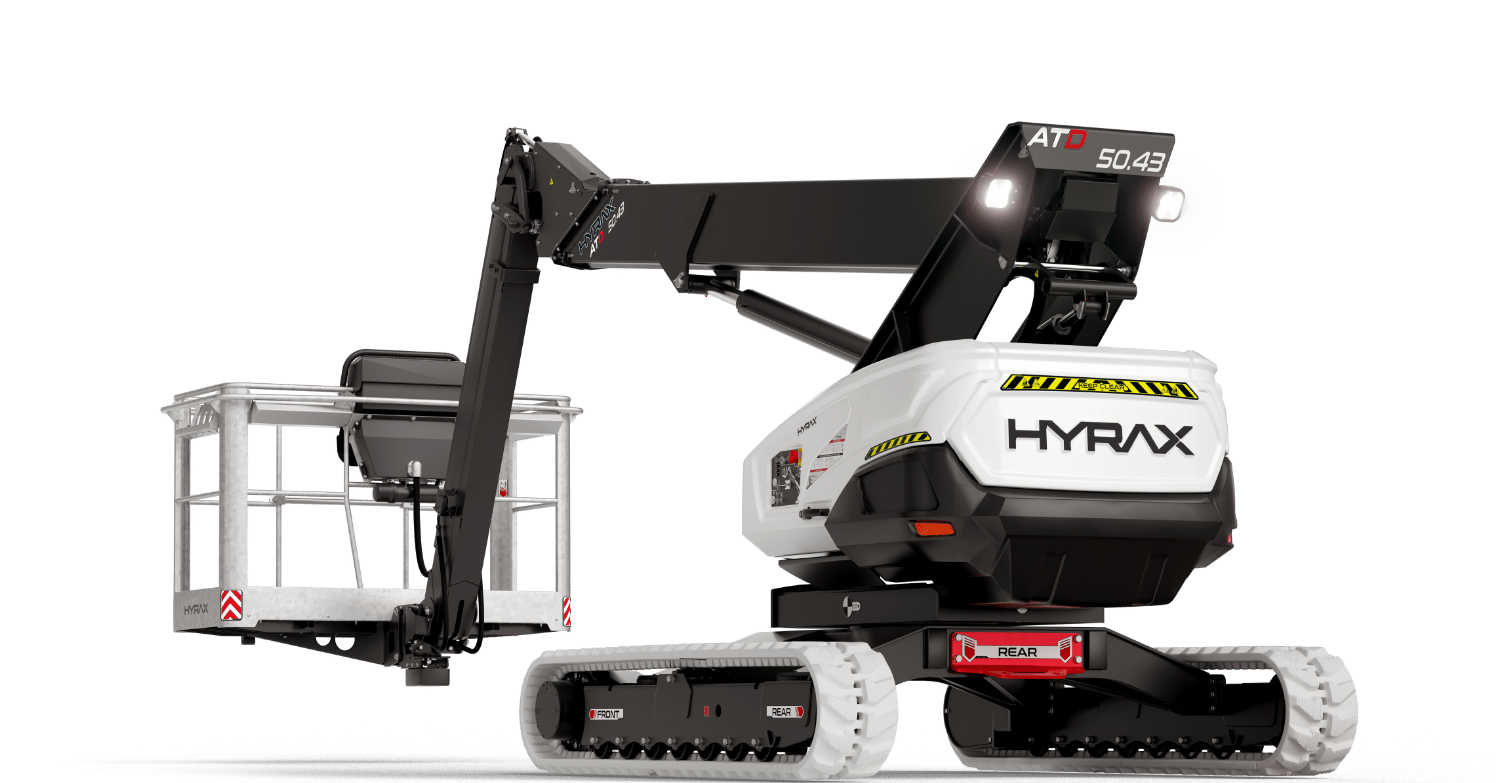

The aerial work platform
for uncompromising heavy-duty tasks
The HYRAX 50.43 is the HYRAX 27.12’s big brother. Weighing in at 5 tons, its extra strength makes it a true workhorse. Its jib provides all the flexibility you need. You can drive and operate at height, even on a slope of up to 15 degrees.
Robust design
With its 5-ton mass, you can conquer any construction site. Yet, 4 machines fit on a single flatbed trailer.
Lifting up to 727 lbs
Work together. Go up with two people and even bring extra material.
Level operation
The automatic leveling chassis corrects a sloped surface up to 15 degrees.
HYRAX highlights
A HYRAX is exceptionally easy and fast to operate. You simply mold a HYRAX to your needs. Without unnecessary complications.
Up to 43.3 feet high
Work higher, get more done
Reach up to 32.8 feet
Work further with 220 lbs in the platform up to 35.1 feet of horizontal reach.
Up to 727 lbs into the air
Plenty of room for 2 people and material
Safely to height
Anti-Entrapment protection above control panel
Safely to height
Anti-Entrapment protection above control panel
Automatic self-leveling
Keep working up to 15º on a slope
Travel up to 1.4 mph
At 43.3 feet with 0.2 mph
Future-Proof
Also available fully electric
180° Jib rotation
180° Functional jib
360° Turntable Rotation
360° Continuous rotation
180° Platform Rotation
Flexible platform with 180° rotation
Made in Holland
From A-to-Z dutch made in our own factory
Stage V Diesel ATD
18,5kW 3 cylinder Kubota
diesel engine
11,36 gal fuel tank capacity
Emission-friendly
Bring the specs to life
Further than you think

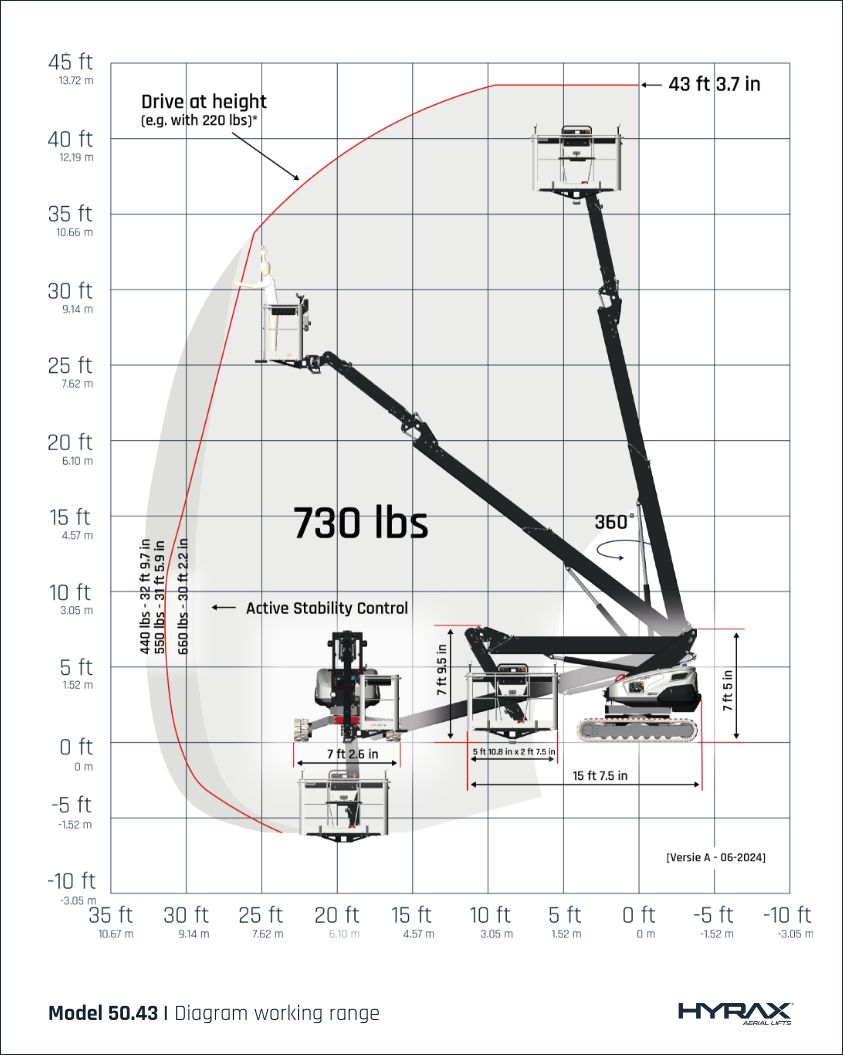

Working range
Available
Options
Automatic bi-leveling 15° / 15°
Extra counterweight
Height-adjustable work lights on platform
4x led work lights on platform
Led work light under platform
Non-marking tracks (gray)
Load holders on the front of the platform (154 lbs)
Solar panel platform
HY-link portal connection
Holder for sealant or foam cans
Extra screw trays
Level holder
Bucket holder
