Specifications
Model 27.12
A Telescopic Boom Lift
that Delivers the Best Performance.
The HYRAX achieves what should be impossible. To get to know the machine, you need to know two things. How big this boom lift is, in terms of its performance, range, capacity, functionality. And how small it is, when you fold all that steel into a package ready for transport. Watch with us?
Easy to transport
More flexible than ever. The HYRAX can be transported quickly to any location. Easy to transport on a small trailer.
Working on a incline
With the HYRAX, you make every working day your own. Regardless of what incline you are on. The automatic bi-leveling ensures that you always level on gradients of up to 15°.
Driving at height
No support outriggers. But driving at height. 12.6 metres height to be exact. With a safe speed of 1.5km/h.
HYRAX highlights
A HYRAX is particularly easy and quick to operate. It is the sum of all the little tricks which make the HYRAX. You simply set the HYRAX to your wishes. Without any complicated hassle.
Up to 12,6 metres high
Work higher, get more done
Horizontal reach till 8,5 metre
Work further till 80 kg at 8,5 metre
Lifting with up to 270 kilograms
Enough space for workers and material
Get up to height safely
Pinch prevention above control panel
Easy to transport
With a machine weight of 2720 kg
Automatic bi-leveling
Up to 15º automatic bi-leveling.
Transport mode up to 4 km/h
At 12.6 metres at 1.5 km/h
Prepared for the future
Also available in all-electric versions
180° jib rotation
180° functional jib
360° slewing ring
360° continuous rotation
180° platform rotation
Flexible platform with 180° rotation
Made in Holland
100% Manufactured in the Netherlands
Volledig elektrisch
Volledig lithium aangedreven
20kWh accupakket
2 werkdagen accu
Subsidie beschikbaar
Opties
10kWh extra accucapaciteit
400V 3-fasen krachtstroomlader snel laden
Stage V Diesel ATD
18,5kW 3 cylinder Kubota
diesel engine
43 litre fuel tank
Emission-friendly
Opties
Stroomaansluiting - 6,5kVA-230V AC generator
Elektrische plug-in diesel
18,5kW 3 cilinder Kubota dieselmotor
Electrische plug-in aandrijving 230V
Binnen stil uitstoot vrij werken
Diesel achter de hand
Opties
Stroomaansluiting - 6,5kVA-230V AC generator
Stroomaansluiting - doorlus via plug-in
Let the Specifications Come to Life
Beyond What You Imagine

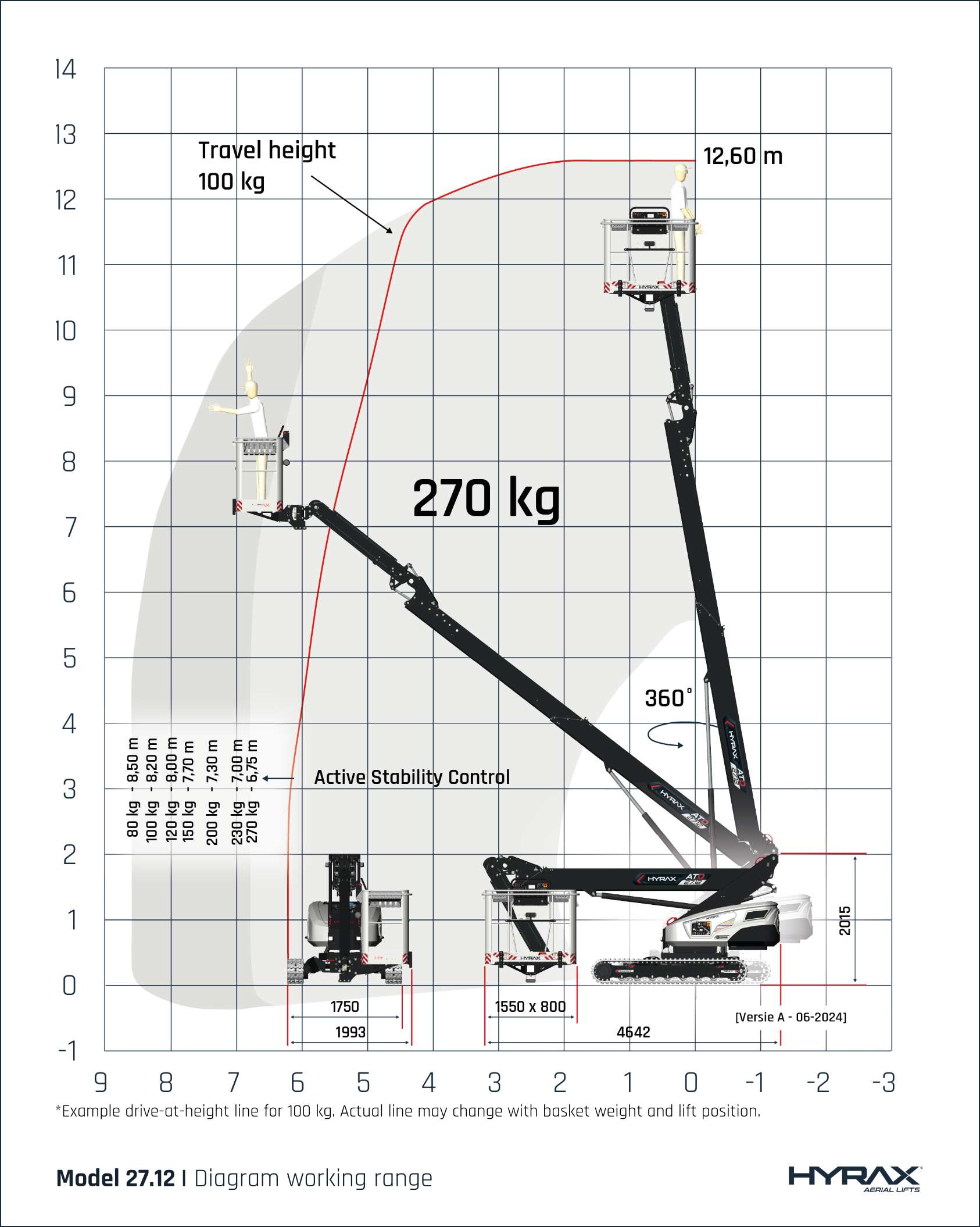

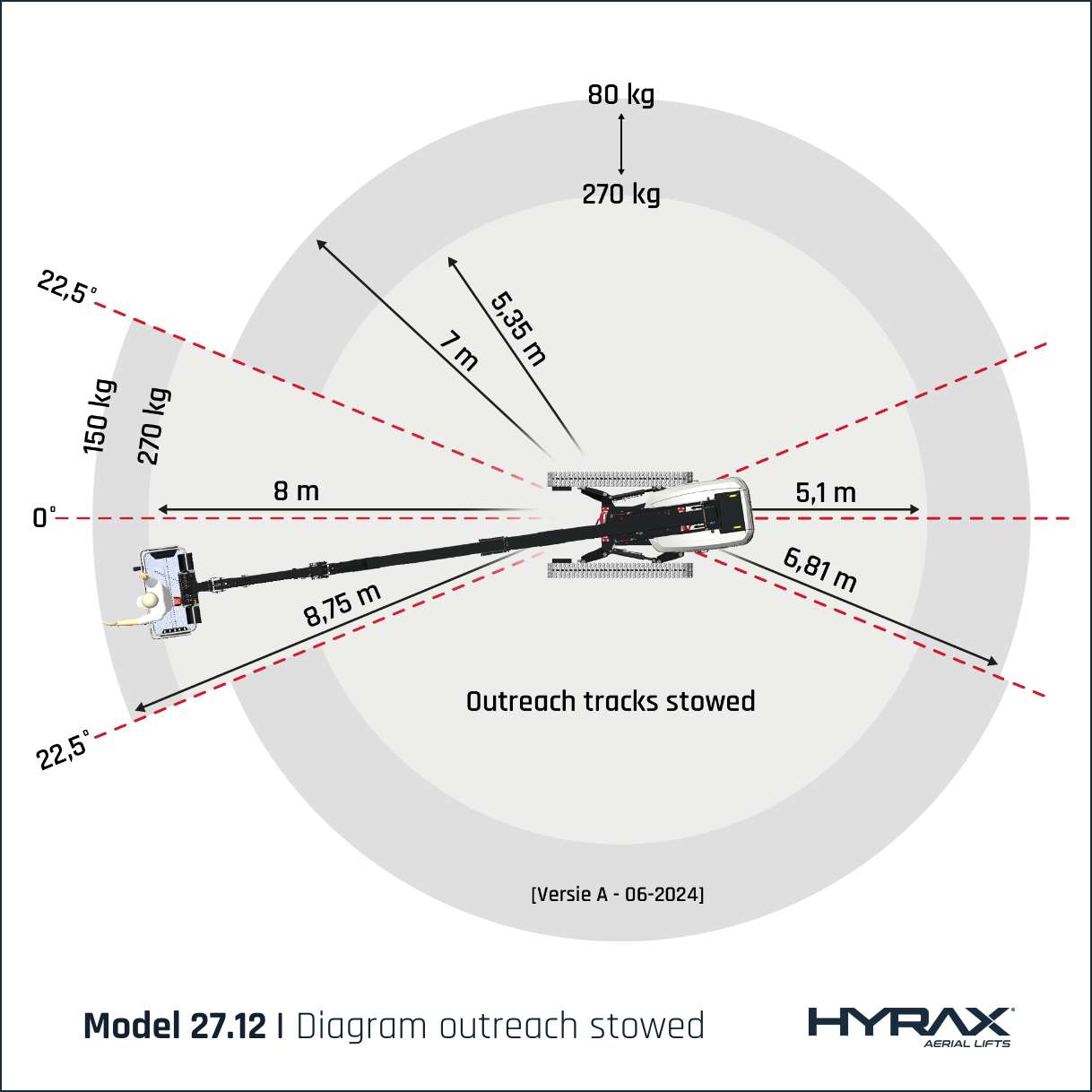

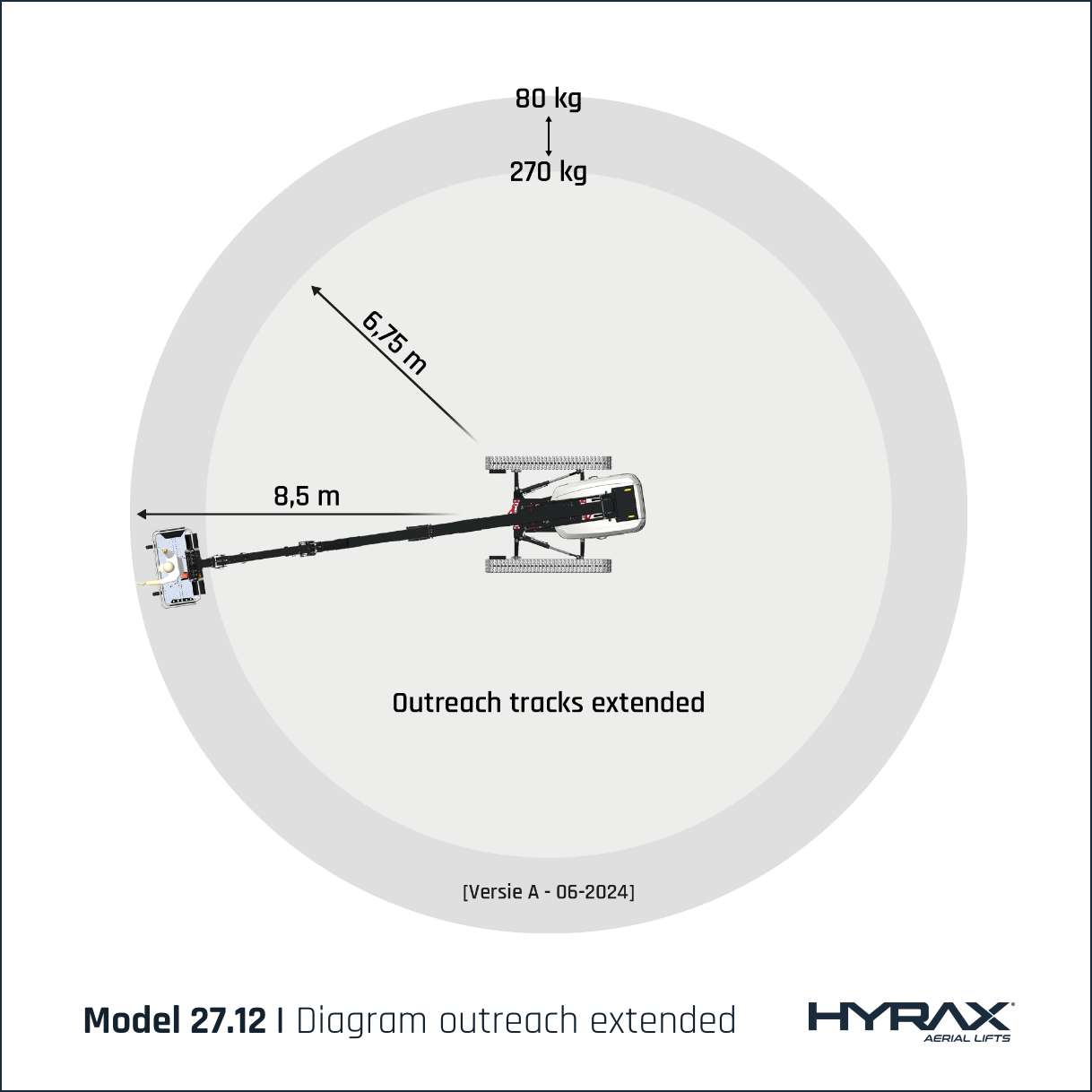

Working range
Available
Options
Extra counterweight - 81kg/124kg/160kg/230kg
Adjustable work lights on platform
4x led work lights on main frame
Led flood light under platform
Non-marking rubber tracks (grey)
Foldable load carriers on platform (70 kg)
Solar panel installation basket
HY-Link portal communications
Holder for spray cans
Extra screw trays
Water level holder in platform
Pail hanger in platform
