Specifications
Model 50.14
The aerial work platform
built to be indestructible, made for powerful performance
The HYRAX 50.14 is the simplest, and toughest, model in the line-up. Its jib-less mast offers unmatched strength. Carrying over 450 kg in the work platform is easier than ever. Combine that with the extra-wide basket, and your possibilities are endless.
Extra-wide work platform
With a 2400 mm work platform, you get even more space to work at height.
Lifting up to 454 kg
Work together. Go up with two people and bring extra materials along.
Work level and steady
The self-leveling chassis automatically adjusts for uneven terrain, compensating for slopes up to 15 degrees.
HYRAX highlights
A HYRAX is exceptionally easy and quick to operate. You’re in full control, no complicated hassle.
Up to 13,8 metres high
Werk hoger, krijg meer gedaan
Horizontal reach till 10,7 metre
Keep working with 100 kg in the platform at up to 10.7 meters horizontal reach
Lift up to 454 kg into the air
Plenty of space for two people and materials
Extra-large work platform
Enjoy more room to move with the 2400 mm work platform
Ascend safely to new heights
Crush protection above the control panel
Automatic self-leveling
Work on slopes up to 15º
Drive at speeds up to 2.3 km/h
At 13,8 meters, drive at 0.4 km/h
Ready for the future
Also available as a fully electric version
360° turntable rotation
360° continuous rotation
180° platform rotation
Flexible work platform with 180° rotation
Made in Holland
Dutch-made from A to Z in our own factory
Fully electric
Fully lithium powered
20kWh battery pack
2 days of battery runtime
Subsidy available
Options
10kWh extra batteries
400V 3-phase charger for fast charging
Stage V Diesel ATD
18,5kW 3 cyl. Kubota
diesel engine
43-liter fuel capacity
Low-emission
Options
Power in platform - 6,5kVA-230V AC generator
Electric plug-in diesel
18,5kW 3 cyl. Kubota diesel engine
Electric plug-in drive motor 400V
Quiet and emission-free operation indoors
Diesel backup at your fingertips
Options
Power in platform - 6,5kVA-230V AC generator
Power in platform - loop through by plug-in
Further than you’d expect

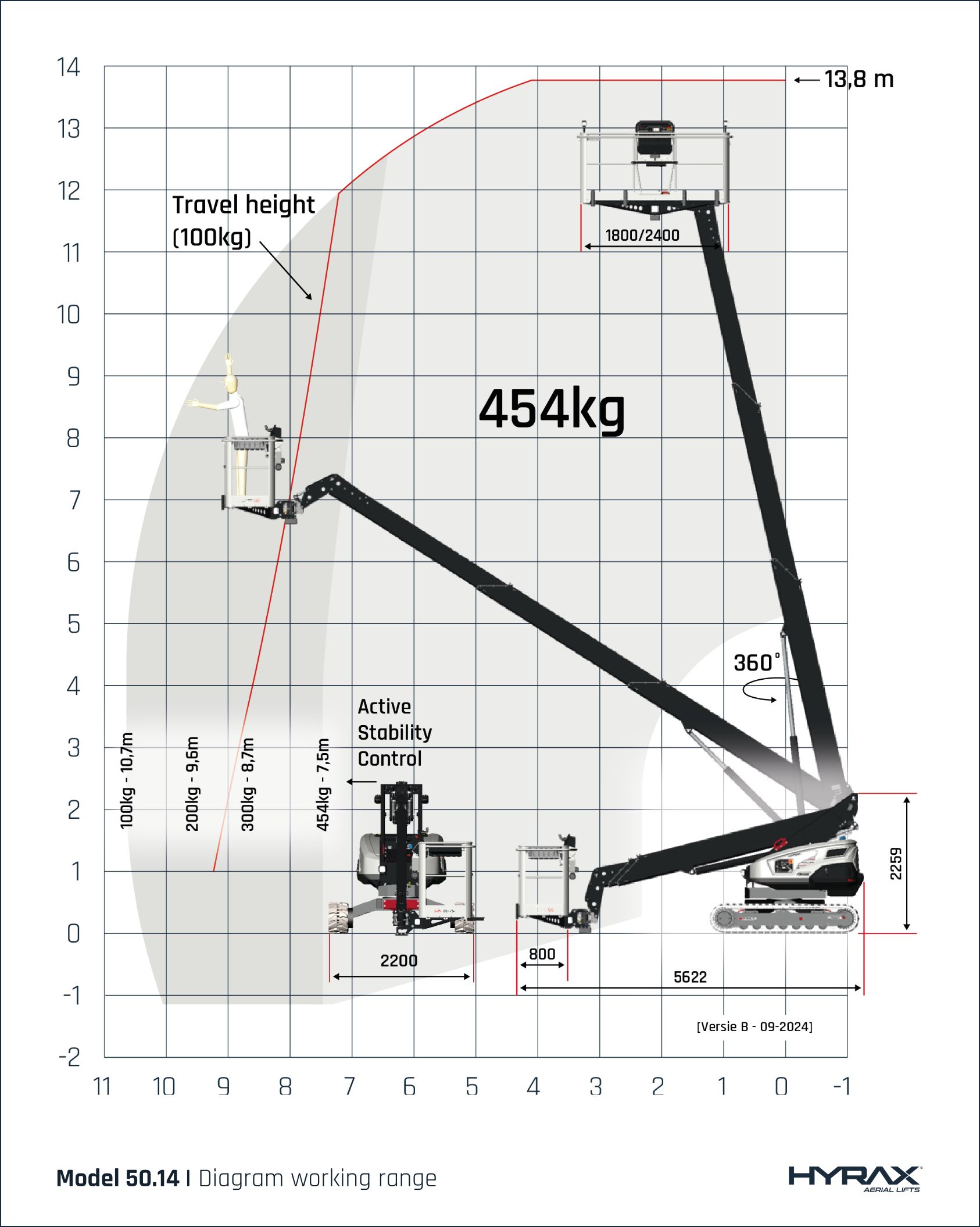

Working range
Available
Options
Automatic bi-leveling 15° / 15°
Extra couterweight
Adjustable work lights on platform
4x led work lights on main frame
Led flood light under platform
Non-marking rubber tracks (grey)
Foldable load carriers on platform (70 kg)
Solar panel installation basket
HY-Link portal communications
Holder for spray cans
Extra screw trays
Water level holder in platform
Pail hanger in platform
